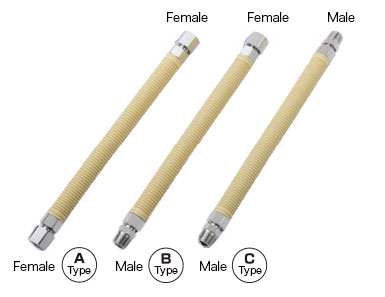

Metal flexible pipe fitting, PI2 (for propane gas) | KYOSEI, suppliers of gas and water piping materials, including pipes, valves, and governors
The surface of the highly corrosion-resistant stainless steel (SUS304) tube is coated with epoxy resin. In addition, an elastomer (TPE) cover protects the inner unit from salt, detergent, and oil. Easy to bend, align, and place. Installation is easy even in a narrow space. The tube will not become flat in bending, and will not restrict gas flow. Metal touch screw connection prevents loosening at the ends or from equipment, securing safety.
Certified product by Japan L.P. Gas Instrument Inspection Association (LIA)
Specifications
* Scroll the page right or left to view the complete table.
| NO |
Part name |
Material |
Finishing |
| 1 |
Joint fitting (Cap nut) |
C3604BD |
Nickel chrome plating |
| 2 |
Tube |
SUS304 |
Epoxy resin coating |
| 3 |
Connecting fitting
(Male nipple) |
C3604BD |
Nickel chrome plating |
| 4 |
Connecting fitting
(Female nipple) |
C3604BD |
Nickel chrome plating |
| 5 |
Protective cover |
TPE |
|

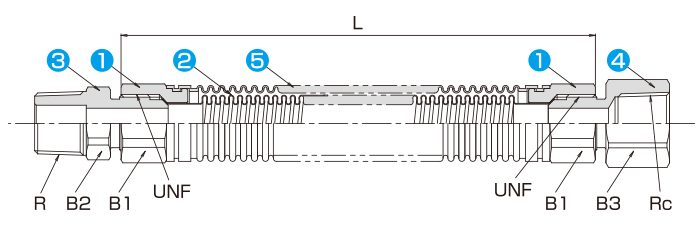

* B type structure
| Nominal dia. |
Length, L (mm) |
| Fitting section |
Tube |
15A
(1/2B) |
10A
(3/8B) |
200 |
250 |
300 |
450 |
600 |
※900 |
* 900L is without protective cover.
