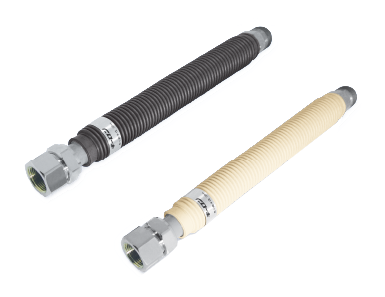

Metal flexible pipe fitting, TO (for city gas) | KYOSEI, suppliers of gas and water piping materials, including pipes, valves, and governors
Suitable for gas equipment connection piping.
High safety, protecting comfortable life.
Latest technology incorporated in safety measures. metal flexible pipe fittings enable space-saving piping. In addition, a combination of resin-coated outer surface and protection cover secures high durability, corrosion resistance, and safety.
(Available colors: ivory and gray)
Certified product by Japan Gas Appliances Inspection Association (JIA)
Specifications
* Scroll the page right or left to view the complete table.

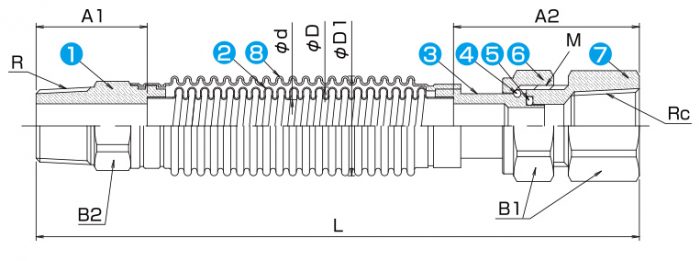

| NO |
Part name |
Material |
Finishing |
| 1 |
Nipple |
SWRCH10 |
Zinc phosphate coating treatment |
| 2 |
Tube |
SUS304 |
Epoxy resin baking finish (gray) |
| 3 |
Joint fitting |
SWRCH10 |
Zinc phosphate coating treatment |
| 4 |
C-ring |
SUS304 |
|
| 5 |
O-ring |
NBR |
|
| 6 |
Cap nut |
C3604BD |
Nickel chrome plating |
| 7 |
Socket |
C3604BD |
Nickel chrome plating |
| 8 |
Protective cover |
TPE |
Ivory, gray |
| Length/ Nominal dia. |
15A
(1/2B) |
20A
(3/4B) |
| 200 |
○ |
○ |
| 250 |
○ |
○ |
| 300 |
○ |
○ |
| 400 |
○ |
○ |
| 600 |
○ |
○ |
