Pressure switch valve for direct-acting governor emergency stop systems

Pressure switch valve for direct-acting governor emergency stop systems

Features

  • Mounting this valve on a direct-acting governor saves installation space.

  • Electrical portion has an explosion-proof structure.

Specifications

Pressure switch valve
Model KSVG
Connecting diameter 15A
Operating pressure Less than 0.3 MPa
Stopping pressure 3〜10 kPa
Material Valve main portion (aluminum)
Valve shape Three-way valve
Actuation method Electromagnetic action by self-holding solenoid

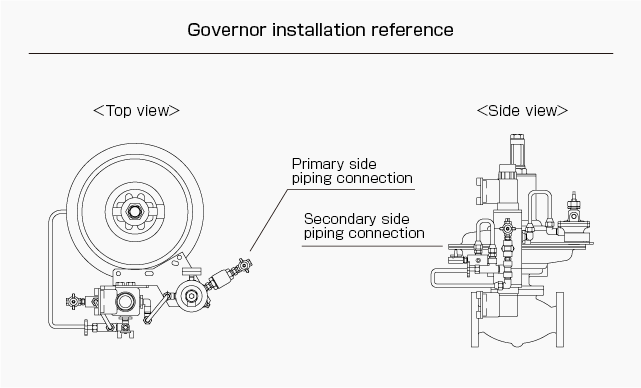

Governor installation reference



* Scroll the page right or left to view the complete table.

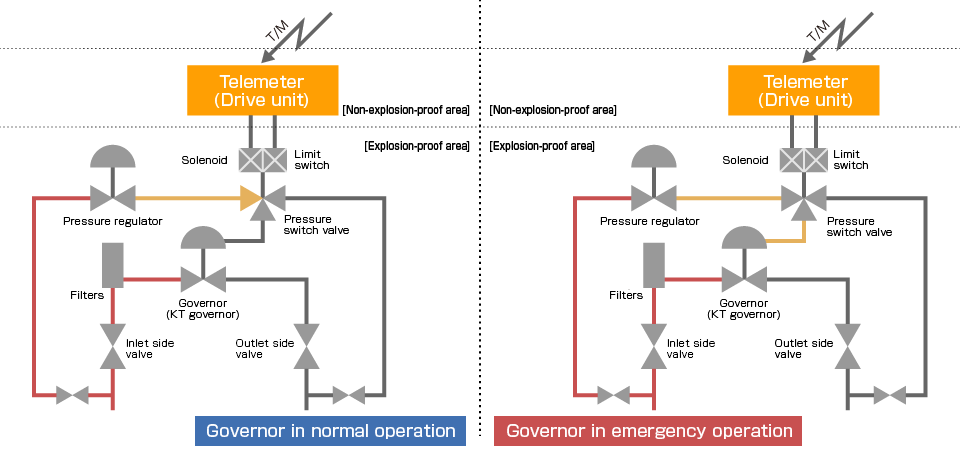

Emergency stop system diagram
Emergency stop system diagram
