Features
-
This governor unit is most suitable for dedicated small-flow control.
-
An integrated structure of two-way governor, shut-off valve and angle type filter saves installation space.
-
Unitization reduces cost and work hours.
(Please use our dedicated template to study pre-installation piping.)
-
Optionally, shut-off valve can be linked with fire and earthquake alarms, thus enabling the governor unit to operate as a multi-purpose function device (WS-TS type).
Specifications
| Unit system |

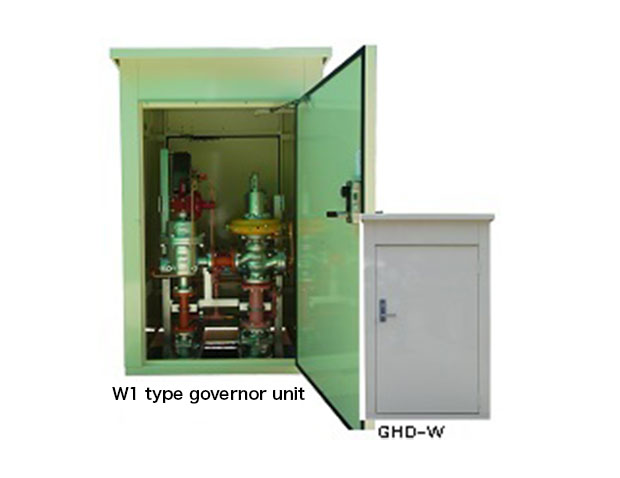

W1 type (2-line and 1-shut-off system)
W2 type (2-line and 2-shut-off system) |
| Connecting diameter |
In 50A, out 80A |
Unit configuration
| Governor model |
KY-OL |
KY-OM |
| Governor diameter |
50A × 80A (Inlet connection 50A and outlet connection 80A) |
| Primary pressure |
Less than 0.3 MPa |
| Secondary pressure |
1.18～4.90kPa |
4.41～19.6kPa |
| Setting range of filter with over pressure shut-off valve (MFV) |
1.96～27.5kPa |
| Setting range of dry-type safety device (KVSR) |
0.981～24.5kPa |
Housing
| Type (Model) |
GHD-W type |
| Dimensions (Main unit) |
W 1,100 x D 1,100 x H 1,775 mm |
| Structure |
Rectangular cylinder, with front and back doors |
| Standard paint color |
Ivory white |
| Materials |
Stainless steel |
