Features
-

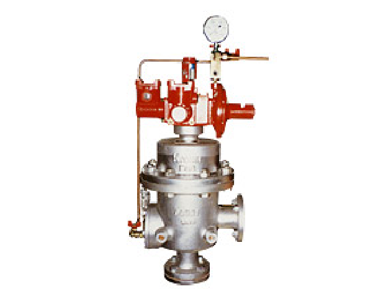

Rust remover with built-in emergency shut-off valve (MEV) requires only small installation space.
-
Lock after shut-off must be manually released.
-
Optional remote shut-off and under pressure shut-off functions are also available.
Specifications
| Model | MFV (Lift type) | |
|---|---|---|
| Nominal dia. | 50A | 100A |
| Operating pressure | Less than 1.0 MPa | |
| Adjustable pressure range | OPS-L type: 1.96 to 27.5 kPa OPS-H type: – |
OPS-L type: 1.96 to 19.6 kPa OPS-H type: 17.7 kPa to 0.785 MPa |
| Material | Main unit [FCD], main portion [SUS], actuator [aluminum], and filter element [PVF (400 mesh equivalent)] | |
| Scope of system | Over pressure shut-off (OPS), under pressure shut-off (UPS), remote shut-off, alarm-linked shut-off (gas leakage, earthquake, and fire alarms) | |
