Third-party certified product under Japan Water Works Association.

Features

Easy installation.

Easy fitting connection.
Flexible bending arrangement.
Easy to cut and smooth cut surface.
Free cut length from short to long.
Earthquake resistant and most suitable for renovation.

Excellent flexibility.
High tensile and bend strength.
Hygienic and wide applications.

Stainless steel 316L with excellent corrosion resistance.
Applicable to a wide temperature range from cold water to hot water.
Outer surface with weather-resistant PVC coating.

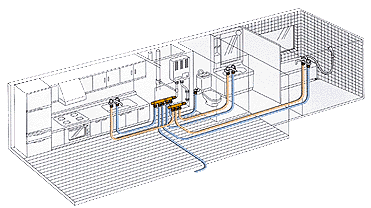

Application example

◎Operating temperature = Max. 80°C (water)
Operating pressure = Max. 1.0 MPa (10 kgf/cm²)
* It cannot be used for piping other than water, such as gas, vapor, air, oil, and others.

Specifications

* Scroll the page right or left to view the complete table.

Unit: mm

Material		Stainless steel (JIS G4305, SUS316L)
Nominal dia.		15A	20A
Dimensions	Product OD (D)	19.6	25.8
	Original pipe OD (d₀)	18.0	24.2
	Root OD (d₁)	14.8	20.0
	Original pipe thickness (t)	0.3
	Coating thickness (T)	0.8
	Length	25m
Coating		Soft PVC
